Sound in Processing

At first I thought sound in processing was really cool, but in fact, while parts of it are nice, it's definitely not ready for prime time...

What it does do for us is show how a coding language can be extended and enhanced in its capabilities with the use of libraries, which we can import into the language by downloading the code from the web. You have to import the right stuff and put it in the right place for the Processing coding environment to make use of it. To get the library installed in Processing, in the PDE choose Menu > Sketch > Import Library... > Add Library to get this dialog:

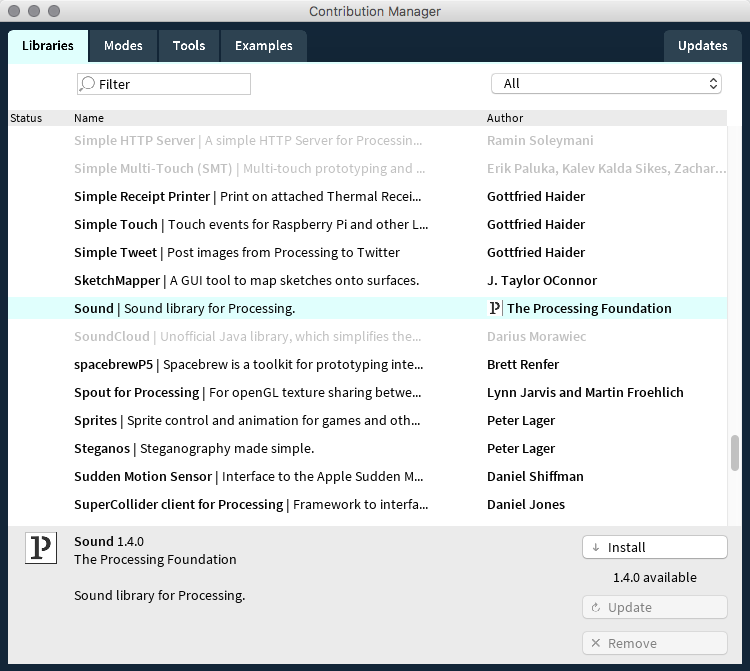

Choose the Sound library and click the install button.

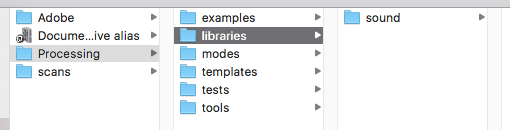

You should now see the library added to your Processing folder.

Let's Make Some Noise!

Of course, if we're going to play sounds we need some sound files. I've found that .aiff works most reliably with one gotcha: stereo sounds can mess things up, so you need to convert sounds to mono and to .aiff.

Make Sound Files

You can use any sound file you like, but first convert it to mono and .aiff. There's an excellent open source sound editor called Audacity, available at fosshub.com/Audacity.html. Audacity doesn't support .m4a files without a special extension, so I'll give you a working file for now.

Get the sound file you want, I'll use this one: loony_tunes.mp4.zip. You can download an already formatted .aiff file here at: loony_tunes.aiff.zip

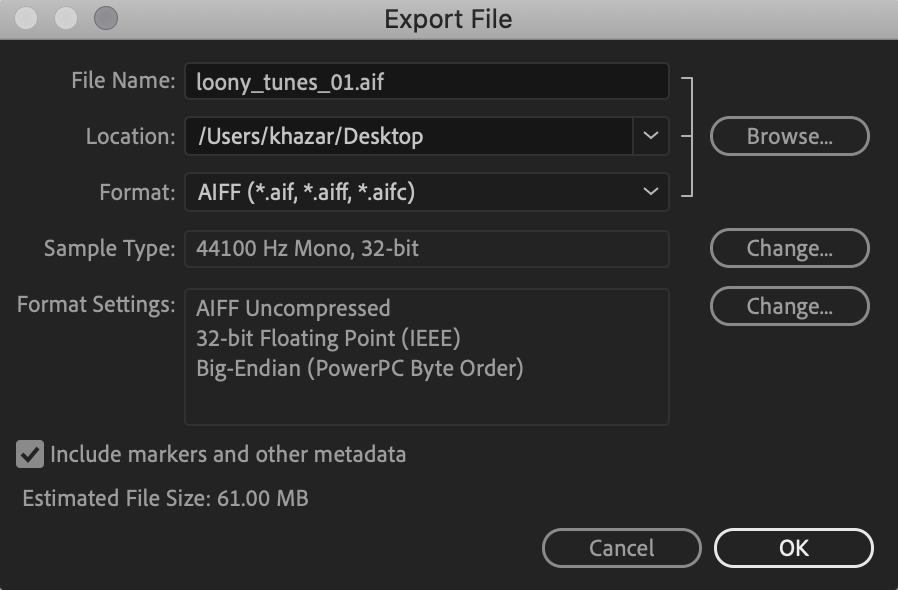

First we'll open it in Adobe Audition and edit it down to 19.783 seconds, then use Menu > Export > to export it as a mono .aiff file.

Then, in Processing, we'll make a new sketch, save it as playback01, and use Menu > Sketch > Add File... to import the sound into the data folder of the sketch (whew).

Know The Code

The Sound Library has about 20 commands with lots of settable properties. The docs are here: https://processing.org/reference/libraries/sound/index.html

Finally, we're ready to code

Play A Sound File

New concepts:



PROCESSING

Simple Sound Playback

// First, import the sound libraries
// The asterisk makes sure you import all of the sound libraries
import processing.sound.*;

// Make a sound variable
SoundFile loonyTunes;

boolean soundOn = false;

void setup() {
  size(500, 500);
  // Load the loonyTunes variable with a sound
  // The sound has to be in the sketches data folder
  loonyTunes = new SoundFile(this, "loony_tunes-mono.aiff");
}

void draw() {
  background(0);
  textSize(24);
  textAlign(LEFT);
  text("loony_tunes.aiff", 100, 100);
  if (soundOn) {
    // Map mouseX from 0.25 to 4.0 for playback rate. 1 equals original playback
    // speed 2 is an octave up 0.5 is an octave down.
    float myRate = map(mouseX, 0, width, 0.125, 5.0);
    loonyTunes.rate(myRate);
    text("rate: " + myRate, 100, 150);
    // Map mouseY from 1.1 to 0.0 for amplitude
    float myAmp = map(mouseY, 0, width, 1.1, 0.0);
    loonyTunes.amp(myAmp);
    text("volume: " + myAmp, 100, 200);
  } else {
    text("rate: ", 100, 150);
    text("volume: ", 100, 200);
  }
  // Draw and label buttons
  noFill();
  stroke(255);
  rect(100, 400, 100, 50);
  textAlign(CENTER);
  // Play/Stop
  if (soundOn) {
    text("Stop", 150, 435);
  } else {
    text("Play", 150, 435);
  }
}

void mouseClicked() {
  // Check for play/stop button
  if (mouseX > 100 && mouseX < 200 && mouseY > 400 && mouseY < 450) {
    if (soundOn) { // Sound is not playing
      loonyTunes.stop();
      soundOn = false;
    } else { // Sound is playing
      loonyTunes.loop();
      soundOn = true;
    }
  }
}

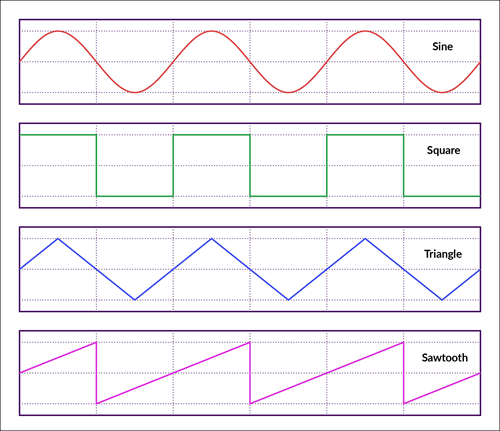

Sound Wave Generation

Processing can also be a digital synthesizer! Try this one:



PROCESSING

Waveform Synthesizer

import processing.sound.*;

// Set up four waveform oscillator variables
SqrOsc mySqr; // Square waves
SinOsc mySin; // Sin waves
SawOsc mySaw; // Sawtooth waves
TriOsc myTri; // Triangle waves
// Track which oscillator is running
int whichOne = 0; // 0 means nobody's running

void setup() {
  size(500, 500);
  stroke(255);
  // Construct oscillators into the variables.
  mySqr = new SqrOsc(this);
  mySin = new SinOsc(this);
  mySaw = new SawOsc(this);
  myTri = new TriOsc(this);
}

void draw() {
  background(0);
  // Map mouseY from 20Hz to 1000Hz for frequency
  mySqr.freq(map(mouseY, 0, height, 20.0, 1000.0));
  mySin.freq(map(mouseY, 0, height, 20.0, 1000.0));
  mySaw.freq(map(mouseY, 0, height, 20.0, 1000.0));
  myTri.freq(map(mouseY, 0, height, 20.0, 1000.0));
  // Map mouseX from left to right pan values
  mySqr.pan(map(mouseX, 0, width, 1.0, -1.0));
  mySin.pan(map(mouseX, 0, width, 1.0, -1.0));
  mySaw.pan(map(mouseX, 0, width, 1.0, -1.0));
  myTri.pan(map(mouseX, 0, width, 1.0, -1.0));
  // Draw buttons
  fill(0);
  rect(100, 100, 50, 50);
  rect(100, 175, 50, 50);
  rect(100, 250, 50, 50);
  rect(100, 325, 50, 50);
  // Create UI
  cursor(ARROW);
  fill(128);
  if (mouseX > 100 && mouseX < 150) {
    if (mouseY >100 && mouseY < 150) {
      rect(100, 100, 50, 50);
      cursor(HAND);
    }
    if (mouseY > 175 && mouseY < 225) {
      rect(100, 175, 50, 50);
      cursor(HAND);
    }
    if (mouseY > 250 && mouseY < 300) {
      rect(100, 250, 50, 50);
      cursor(HAND);
    }
    if (mouseY > 325 && mouseY < 375) {
      rect(100, 325, 50, 50);
      cursor(HAND);
    }
  }
  // Show on state
  fill(0, 200, 0);
  switch(whichOne) {
  case 1 :
    rect(100, 100, 50, 50);
    break;
  case 2 :
    rect(100, 175, 50, 50);
    break;
  case 3 :
    rect(100, 250, 50, 50);
    break;
  case 4 :
    rect(100, 325, 50, 50);
    break;
  }
  // Label buttons
  fill(255);
  textSize(24);
  text("Square Wave", 160, 132);
  text("Sine Wave", 160, 207);
  text("Sawtooth Wave", 160, 282);
  text("Triangle Wave", 160, 357);
}

void mouseClicked() {
  // Turn everybody off
  mySqr.stop();
  mySin.stop();
  mySaw.stop();
  myTri.stop();
  whichOne = 0;
  fill(255);
  if (mouseX > 100 && mouseX < 150) {
    if (mouseY >100 && mouseY < 150) {
      mySqr.play();
      whichOne = 1;
    }
    if (mouseY > 175 && mouseY < 225) {
      mySin.play();
      whichOne = 2;
    }
    if (mouseY > 250 && mouseY < 300) {
      mySaw.play();
      whichOne = 3;
    }
    if (mouseY > 325 && mouseY < 375) {
      myTri.play();
      whichOne = 4;
    }
  }
}

Better Sound with the minim Library

The Sound library is flakey, so let's use the minim library.

Audio File Download - don't forget to put it in the data folder in an already saved sketch.

PROCESSING

Play/Pause/Rewind with minim Sound

/*
  Uses Minim library for its better AudioPlayer.
  For more information about Minim and additional features,
  visit http://code.compartmental.net/minim/
*/
// Import the minim library
import ddf.minim.*;
// GLOBAL VARIABLES
// Create a minim object variable
Minim minimObj;
// Create a minim player object variable
AudioPlayer playerObj;


void setup() {
  size(500, 200);
  // Put a new minim object into the minim object variable and
  // pass "this" into it so that it can load files from the
  // data directory
  minimObj = new Minim(this);
  // Load the sound into the player object
  playerObj = minimObj.loadFile("loony_tunes.mp4");
  // Set a nice big text size
  textSize(24);
}

void draw() {
  // Refresh the background
  background(0);
  noFill();
  stroke(255);
  rect(100, 60, 100, 50); // PLAY/PAUSE Button
  textAlign(CENTER);
  // Toggle the text of the button base on whether the
  // music is playing or paused
  if ( playerObj.isPlaying() ) { // It's playing, so show PAUSE
    text("PAUSE", 150, 93);
  } else {                       // It's not playing, so show PLAY
    text("PLAY", 150, 93);
  }
  rect(300, 60, 100, 50); // REWIND button
  text("REWIND", 350, 93);
  stroke(255);
}

void mousePressed() {
  // Check for PAUSE/PLAY button
  if(mouseX > 100 && mouseX < 20  && mouseY > 60 && mouseY < 110) {
    // Toggle between playing and pausing
    if ( playerObj.isPlaying() ) {
      playerObj.pause();
    } else {
      playerObj.play();
    }
  }
  // Check for REWIND button
  if(mouseX > 300 && mouseX < 400 && mouseY > 60 && mouseY < 110) {
    // If you don't pause it, it will start playing again if it was
    // already playing
    playerObj.pause();
    playerObj.rewind();
  }
}

PROCESSING

minim Sound with Positional Feedback

/*
  Uses Minim library for its better AudioPlayer.
  For more information about Minim and additional features,
  visit http://code.compartmental.net/minim/
*/
// Import the minim library
import ddf.minim.*;
// GLOBAL VARIABLES
// Create a minim object variable
Minim minimObj;
// Create a minim player object variable
AudioPlayer playerObj;
// Create a global variable for the playerObj position
// so we can use it in draw and mousePressed
float currentPlayerPosition;


void setup() {
  size(500, 200);
  // Put a new minim object into the minim object variable and
  // pass "this" into it so that it can load files from the data
  // directory
  minimObj = new Minim(this);
  // Load the sound into the player object
  playerObj = minimObj.loadFile("loony_tunes.aiff");
  // Set a nice big text size
  textSize(24);
}

void draw() {
  // Refresh the background
  background(0);
  // Display the current position readout
  textAlign(LEFT);
  text(playerObj.position(), 30, 40);
  // Draw a box around position indicator
  rect(30, 140, 440, 20);
  // Draw a 40x40 dot to show where in the song playback is
  // currently located
  // And map it to the space inside the slider rectangle
  currentPlayerPosition = map(playerObj.position(), 0, playerObj.length(), 40, width-30);
  noStroke();
  fill(255);
  ellipse(currentPlayerPosition, 150, 20, 20);
  // Buttons
  noFill();
  stroke(255);
  rect(100, 60, 100, 50); // PLAY/PAUSE Button
  textAlign(CENTER);
  // Toggle the text of the button base on whether the
  // music is playing or paused
  if ( playerObj.isPlaying() ) { // It's playing, so show PAUSE
    text("PAUSE", 150, 93);
  } else {                       // It's not playing, so show PLAY
    text("PLAY", 150, 93);
  }
  rect(300, 60, 100, 50); // REWIND button
  text("REWIND", 350, 93);
  stroke(255);
}

void mousePressed() {
  // Check for PAUSE/PLAY button
  if(mouseX > 100 && mouseX < 200 && mouseY > 60 && mouseY < 110) {
    // Toggle between playing and pausing
    if ( playerObj.isPlaying() ) {
      playerObj.pause();
    } else {
      playerObj.play();
    }
  }
  // Check for REWIND button
  if(mouseX > 300 && mouseX < 400 && mouseY > 60 && mouseY < 110) {
    // If you don't pause it, it will start playing again if it was
    // already playing
    playerObj.pause();
    playerObj.rewind();
  }
}

And finally, let's add the capability to use the dot to control the position of the playback and add a better formatted readout

PROCESSING

Add a Robust Interface with Feedback and Control

/*
  Uses Minim library for its better AudioPlayer.
  For more information about Minim and additional features,
  visit http://code.compartmental.net/minim/
*/
// Import the minim library
import ddf.minim.*;
// GLOBAL VARIABLES
// Create a minim object variable
Minim minimObj;
// Create a minim player object variable
AudioPlayer playerObj;
// Create a global variable for the playerObj position
// so we can use it in draw and mousePressed
float currentPlayerPosition;
// Create a variable to hold the a new position for the
// playerObj, which will be used by playerObj.cue() to
// set a new position. NOTE: For some reason, this has to
// be an integer, cue() does not accept floats.
int newPlayerPosition = 0;
// Create a toggle to determine if the slider control has
// been hit by the mouse
boolean sliderHit = false;


void setup() {
  size(500, 200);
  // Put a new minim object into the minim object variable and
  // pass "this" into it so that it can load files from the data directory
  minimObj = new Minim(this);
  // Load the sound into the player object
  playerObj = minimObj.loadFile("loony_tunes.aiff");
  // Set a nice big text size
  textSize(24);
  // Slow down the frameRate so it sounds better when dragging
  // the conrol dot
  frameRate(12);
}

void draw() {
  // Refresh the background
  background(0);
  // Display the current position readout
  textAlign(LEFT);
  // Set a varable to hold the number of second
  // and two decimal places
  // The code below was found online in StarkOverflow.
  // It is not documented by Processing.org
  String postingPosition=String.format("%.2f",playerObj.position()*.001);
  text(postingPosition, 30, 40);
  // Draw a box around position indicator
  rect(30, 140, 440, 20);
  // Draw a 40x40 dot to show where in the song playback is currently located
  // And map it to the space inside the slider rectangle
  currentPlayerPosition = map(playerObj.position(), 0, playerObj.length(), 40, width-30);
  noStroke();
  fill(255);
  // Check to see if the slider was click on, set by
  // the mousePressed tests below
  if (sliderHit) {
    // Make sure the mouse doesn't drag the slider dot doesn't go outside
    // the slider rectangle
    if(mouseX > 40 && mouseX < width-40){
      ellipse(mouseX, 150, 20, 20);
      sliderHit = true;
      newPlayerPosition = int(map(mouseX, 40, width-40, 0, playerObj.length()));
      playerObj.cue(newPlayerPosition);
    } else if (mouseX <= 40) {  // If it does go outside,
                                // pin it to the right edge...
      ellipse(40, 150, 20,20);
    } else if (mouseX >= width-40) {  // ...or left edge
      ellipse(width-40, 150, 20,20);
    }
  } else { // If the mouse is released, set the slider dot
           // to the current player's position
    ellipse(currentPlayerPosition, 150, 20, 20);
  }
  // Buttons
  noFill();
  stroke(255);
  rect(100, 60, 100, 50); // PLAY/PAUSE Button
  textAlign(CENTER);
  // Toggle the text of the button base on whether the
  // music is playing or paused
  if ( playerObj.isPlaying() ) { // It's playing, so show PAUSE
    text("PAUSE", 150, 93);
  } else {                       // It's not playing, so show PLAY
    text("PLAY", 150, 93);
  }
  rect(300, 60, 100, 50); // REWIND button
  text("REWIND", 350, 93);
  stroke(255);
}

void mousePressed() {
  // Check for PAUSE/PLAY button
  if(mouseX > 100 && mouseX < 200 && mouseY > 60 && mouseY < 110) {
    // Toggle between playing and pausing
    if ( playerObj.isPlaying() ) {
      playerObj.pause();
    } else {
      playerObj.play();
    }
  }
  // Check for REWIND button
  if(mouseX > 300 && mouseX < 400 && mouseY > 60 && mouseY < 110) {
    // If you don't pause it, it will start playing again if it was
    // already playing
    playerObj.pause();
    playerObj.rewind();
  }
  // Check for slider drag
  if  (mouseX > currentPlayerPosition - 10
     && mouseX < currentPlayerPosition + 10
     && mouseY > 140
     && mouseY < 160)
  {
    sliderHit = true;
  }
}

void mouseReleased() {
  // Reset the sliderHit state. If you don't, it will never stop
  // updating the sound
  sliderHit = false;
}
Previous Chapter
Additional Content
